Suzuki K14 Car Flywheel Replacement 12621-69500 100 teeth 67mm Pitch Cride

Jinhuan Auto Parts Manufacturing Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

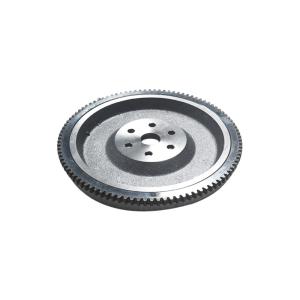

Suzuki K14 Car Flywheel Replacement 12621-69500 100 teeth 67mm Pitch Cride

  • 1
  • 2

Model Number : Suzuki/K14/100 teeth cast iron flywheel

Certifiion : IATF 16949

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Packaging Details : Standard Packaging

Payment Terms : L/C,T/T,etc.

OE No. : 12621-69500

Model : Suzuki/K14/100 teeth cast iron flywheel

Height : 28

Material : cast iron

Teeth : 100

Outer Diameter : 256.3

Contact Now

Description

Please click to view Flywheel alog!.pdf

1. The flywheel product is made of standard HT250 material, the hardness of the matrix reaches 170-200HB, the ring gear part is made of standard 45# alloy steel, and the high-frequency quenching process is adopted. The hardness of the teeth can reach 48-58HRC, which makes the product more heat-resistant and wear-resistant. more durable.

2. Our company uses fully automatic CNC machine tools, machining centers, and dynamic balancing equipment in the processing process to ensure that the processing accuracy of the product is better, and it can reach the dimensional accuracy of the original car factory, so that the sound of the product is smaller and more stable when it is used. .

3. The inspection adopts 3-D Measuring/Metallurgical Micro-test/Hardness test/Tension test and other equipment to ensure that there will be no defective products in the factory.

4. Export products are made of high-strength five-layer A-grade cartons, painted with anti-rust oil on the outside, and covered with anti-rust sealed bags to ensure that the products will not be rusted due to transportation problems.

Feature

The car engine flywheel is designed to provide a range of features that contribute to the overall performance and functionality of the vehicle. The flywheel serves as a rotational inertia device, storing and releasing kinetic energy to maintain the engine's momentum during the combustion cycle.

Details

Teeth 100
For Coupling Size(mm) 185
Clutch Holes&Size (mm) 6-Φ10.4mm
Outer Diameter 256.3
Inner Diameter(mm) 28
Height 28
Pitch Cride (mm) 67
Clutch Pitch Cride(mm) 204

Crafts

Machining

Suzuki K14 Car Flywheel Replacement 12621-69500 100 teeth 67mm Pitch CrideSuzuki K14 Car Flywheel Replacement 12621-69500 100 teeth 67mm Pitch Cride

Drilling Injection Holes

Suzuki K14 Car Flywheel Replacement 12621-69500 100 teeth 67mm Pitch CrideSuzuki K14 Car Flywheel Replacement 12621-69500 100 teeth 67mm Pitch Cride

Dynamic Balance

Suzuki K14 Car Flywheel Replacement 12621-69500 100 teeth 67mm Pitch CrideSuzuki K14 Car Flywheel Replacement 12621-69500 100 teeth 67mm Pitch Cride

Mark

Suzuki K14 Car Flywheel Replacement 12621-69500 100 teeth 67mm Pitch Cride

Package

Suzuki K14 Car Flywheel Replacement 12621-69500 100 teeth 67mm Pitch Cride

Inspection

Tension Test

Suzuki K14 Car Flywheel Replacement 12621-69500 100 teeth 67mm Pitch CrideSuzuki K14 Car Flywheel Replacement 12621-69500 100 teeth 67mm Pitch Cride

Metallurgical Micro-Test

Suzuki K14 Car Flywheel Replacement 12621-69500 100 teeth 67mm Pitch CrideSuzuki K14 Car Flywheel Replacement 12621-69500 100 teeth 67mm Pitch Cride

Hardness Test

Suzuki K14 Car Flywheel Replacement 12621-69500 100 teeth 67mm Pitch CrideSuzuki K14 Car Flywheel Replacement 12621-69500 100 teeth 67mm Pitch Cride

3D Measuring

Suzuki K14 Car Flywheel Replacement 12621-69500 100 teeth 67mm Pitch CrideSuzuki K14 Car Flywheel Replacement 12621-69500 100 teeth 67mm Pitch Cride
