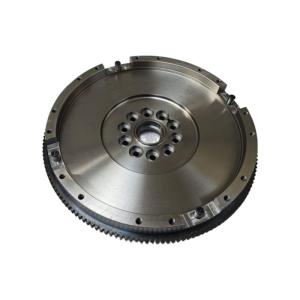

155 Teeth Cast Iron Fly Wheel Assembly Chrysler Dodge Flexplate

Model Number : Chrysler/Dodge/Dodge/155 teeth/cast iron flywheel

Certifiion : IATF 16949

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Packaging Details : Standard Packaging

Payment Terms : L/C,T/T,etc.

OE No. : Dodge 155T

Model : Chrysler/Dodge/155 teeth/cast iron flywheel

Height : 68

Material : cast iron

Teeth : 155

Outer Diameter : 398.7

Contact Now

Description

Please click to view Flywheel alog!.pdf

1. The flywheel product is made of standard HT250 material, the hardness of the matrix reaches 170-200HB, the ring gear part is made of standard 45# alloy steel, and the high-frequency quenching process is adopted. The hardness of the teeth can reach 48-58HRC, which makes the product more heat-resistant and wear-resistant. more durable.

2. The inspection adopts 3-D Measuring/Metallurgical Micro-test/Hardness test/Tension test and other equipment to ensure that there will be no defective products in the factory.

3. Export products are made of high-strength five-layer A-grade cartons, painted with anti-rust oil on the outside, and covered with anti-rust sealed bags to ensure that the products will not be rusted due to transportation problems.

Principle

When starting a car, the gear on the starter motor meshes with the ring gear on the starter flywheel and drives the flywheel to rotate. Since the flywheel is installed on the engine shaft, it drives the engine to rotate and start the car.

Details

Teeth	155
For Coupling Size(mm)	330
Clutch Holes&Size (mm)	10*10.8mm
Outer Diameter	398.7
Inner Diameter(mm)	40.6
Height	68
Pitch Cride (mm)	100
Clutch Pitch Cride(mm)	359/350

FAQ

1. Can a damaged flywheel cause transmission problems?
Yes, a damaged flywheel can cause transmission problems such as clutch slippage and difficulty shifting gears.

2. How do car flywheels work?
Car flywheels work by storing energy in the form of rotational momentum and transmitting power from the engine to the transmission through the clutch.

Crafts

Machining

155 Teeth Cast Iron Fly Wheel Assembly Chrysler Dodge Flexplate

Drilling Injection Holes

155 Teeth Cast Iron Fly Wheel Assembly Chrysler Dodge Flexplate

Dynamic Balance

155 Teeth Cast Iron Fly Wheel Assembly Chrysler Dodge Flexplate

Mark

155 Teeth Cast Iron Fly Wheel Assembly Chrysler Dodge Flexplate

Package

Inspection

Tension Test

Metallurgical Micro-Test

155 Teeth Cast Iron Fly Wheel Assembly Chrysler Dodge Flexplate

Hardness Test

155 Teeth Cast Iron Fly Wheel Assembly Chrysler Dodge Flexplate

3D Measuring
