NS Flywheel Ring Gear Nissan 12312-19G00 12312-61000 12312-A8600 120 Teeth

Product Categories

Jinhuan Auto Parts Manufacturing Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

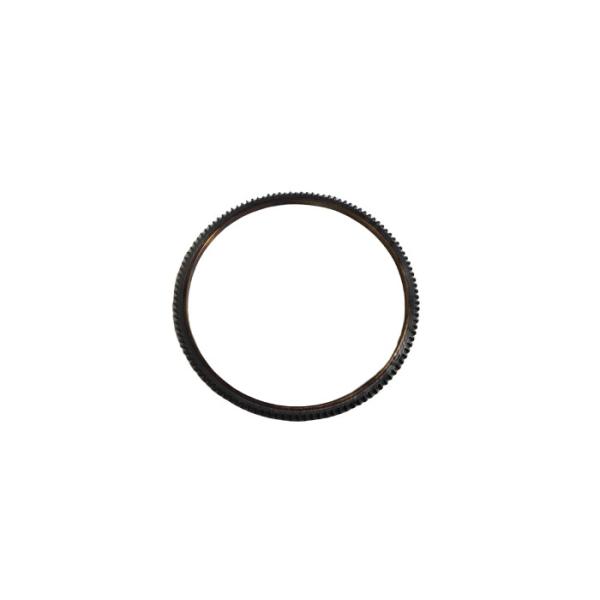

NS Flywheel Ring Gear Nissan 12312-19G00 12312-61000 12312-A8600 120 Teeth

Certifiion : IATF 16949

Place of Origin : China

Model Number : Nissan/12312-19G00/12312-61000/12312-A8600/120 teeth

MOQ : Negotiation

Price : Negotiation

Packaging Details : Standard Packaging

Payment Terms : L/C,T/T,etc.

Car Model : Nissan/12312-19G00/12312-61000/12312-A8600/120 teeth

OEM : 12312-19G00/12312-61000/12312-A8600

Name : RING GEAR

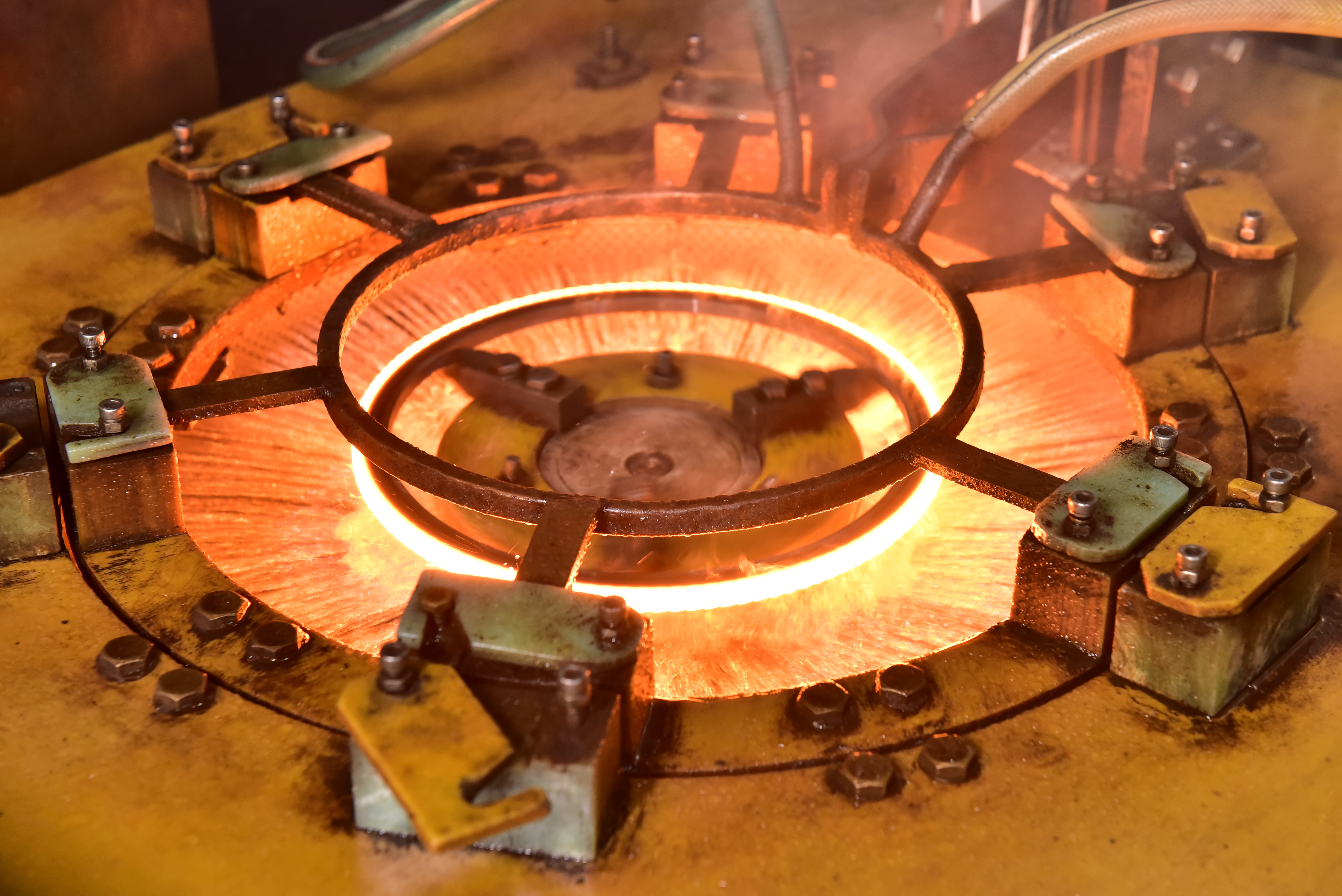

Crafts : Normalising, Turning, Hobbing, Quenching, Tempering

Certified : IAFTF16949

Teeth : 120

Contact Now

Description

Please click to view RING GEAR alog!.xlsx

1. The ring gear part is made of standard 45# alloy steel and high-frequency quenching process. The hardness of the tooth part can reach 48-58HRC, which makes the product more heat-resistant, wear-resistant and durable.

2. Our company uses fully automatic CNC machine tools, machining centers, quenching machines and other equipment in the processing process to ensure better processing accuracy of the products, which can reach the dimensional accuracy of the original parts of the automobile factory, so that the sound of the products is smaller and more Stablize.

3. The inspection adopts 3-D Measuring/Metallurgical Micro-test/Hardness test/Tension test and other equipment to ensure that there will be no defective products in the factory.

4. Export products are made of high-strength five-layer A-grade cartons, painted with anti-rust oil on the outside, and covered with anti-rust sealed bags to ensure that the products will not be rusted due to transportation problems.

Teeth:	120
Outer Diameter	305.5mm
Inner Diameter(mm)	274mm
Height	12mm

Principle

The gear reduction ratio determines the torque multipliion between the starter motor and the engine. The engagement between the ring gear and pinion gear is designed to be secure and prevent slippage during engine starting.

Crafts

Normalising
